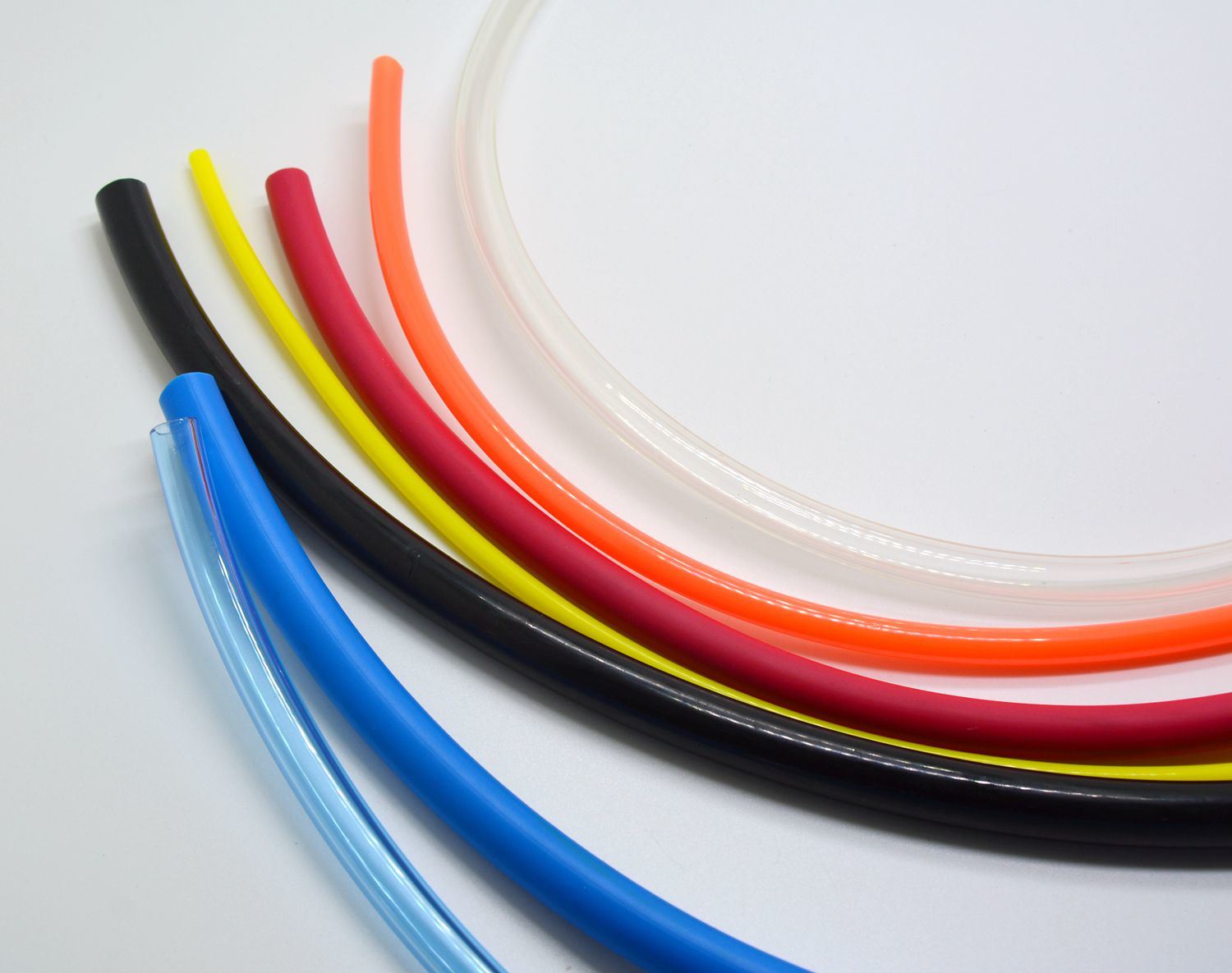

High-strength Red/Green/Transparent or color customized Polyurethane pipe/Pneumatic plastic tube
Applications :
--maily for pneumatic component
--widely used in air compression system
--automation
--food process
--mechanical gas pipeline
--robotics
--general industrial water and gardening
Genaral technical data :
| Polyurethane pipe datasheet | |
| Product name | Polyurethane pipe / pneumatic tube |
| Material | Polyurethane |
| Size | have standard size (as specification sheet )or customized size |
| Color | standard color blue , red ,transparent , or customized |
| Working temperature | -20ºC ~ 80 ºC |
| Hardness | 80-95A |
| Working medium | air, water, oil, etc |
| Bending radium | 15-40mm |
| Working pressure | 8~12bar |
| Burst pressure | 18-32bar |
| Tear strength | 155kg/cm |
| Elongation | 490%~590% |
| Wear strength | 300mg-40mg |
Model type specification details
Model No. | Outside diameter(mm) | Insider diameter(mm) | Packing size (m) | Unit |
AS425 | 4 | 2.5 | 200 | roll |
AS640 | 6 | 4 | 200 | roll |
AS850 | 8 | 5 | 100 | roll |
AS1065 | 10 | 6.5 | 100 | roll |
AS1280 | 12 | 8 | 100 | roll |
AS14100 | 14 | 10 | 100 | roll |
AS16120 | 16 | 12 | 100 | roll |
