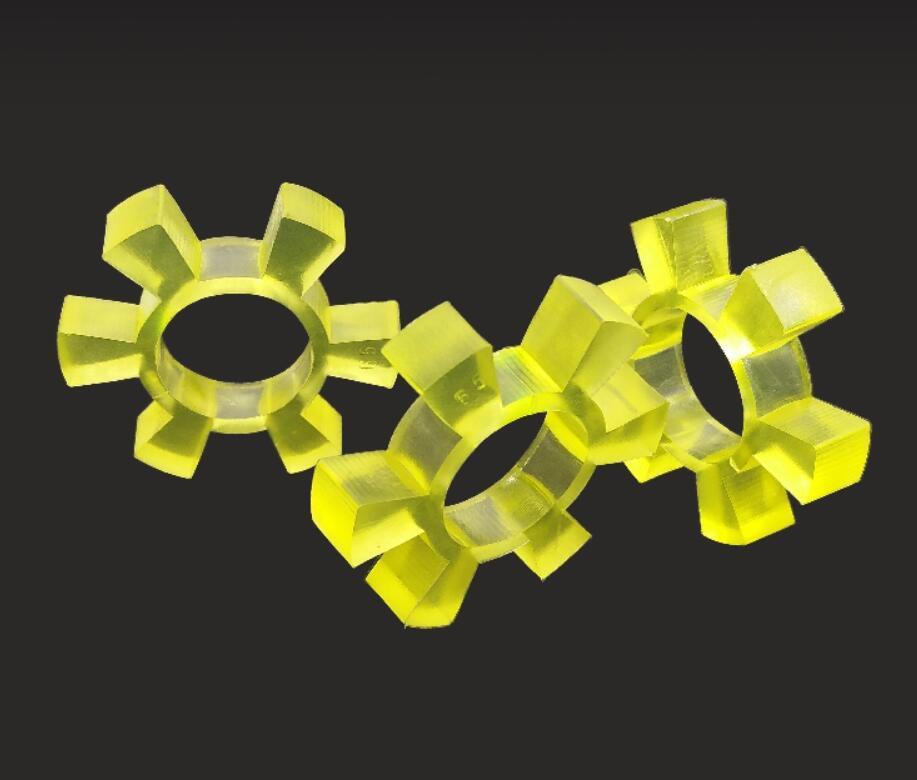

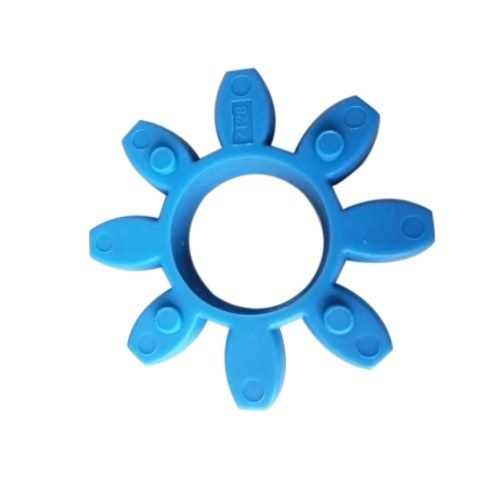

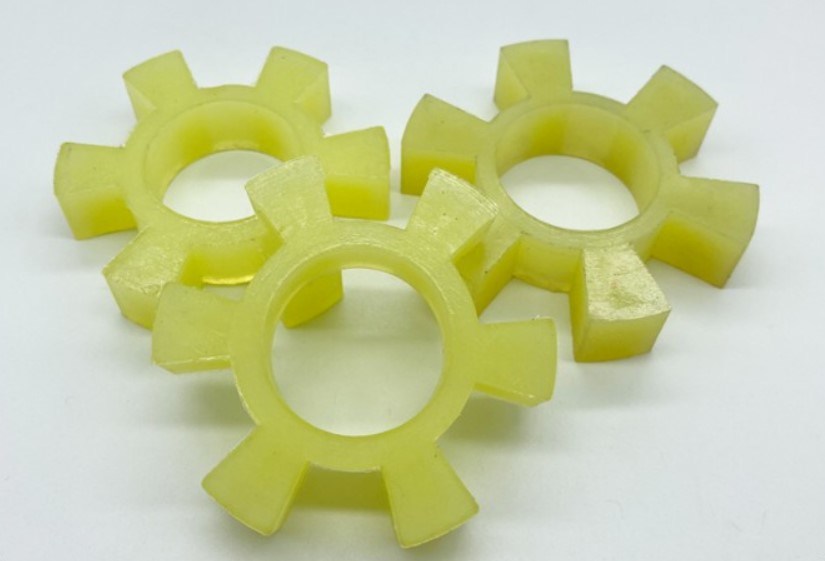

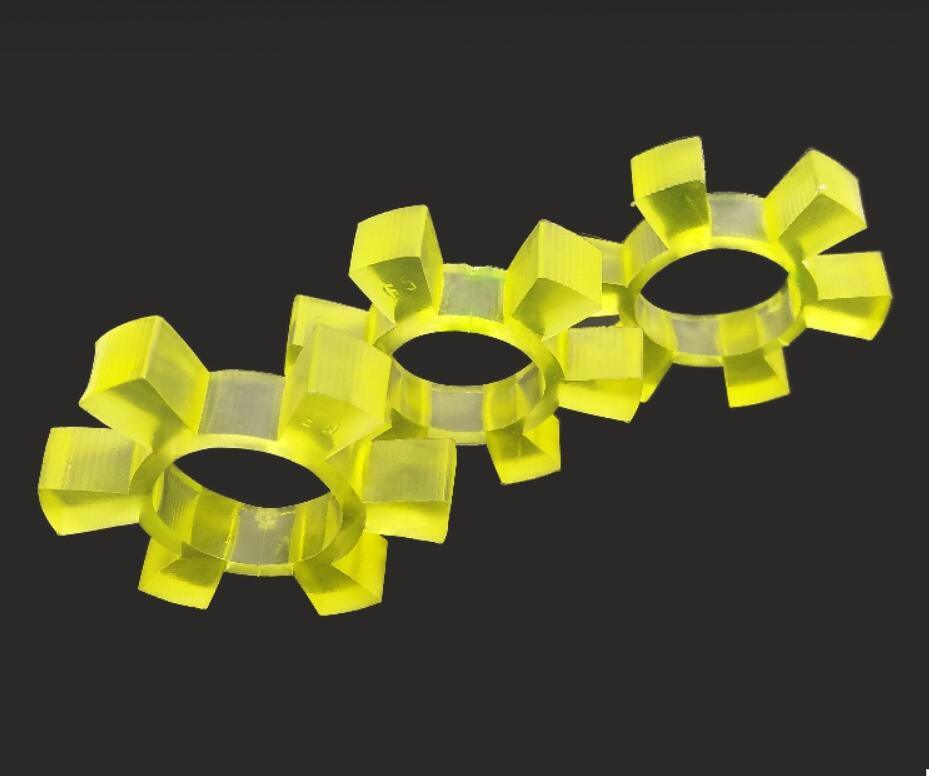

Red, Blue, Yellow Color Polyurethane Rubber Shaft Coupling Elements Jaw Coupling Spider
Available
382Overview Product Description Product Parameters Detailed Photos Our Advantages
| Application |
| Features |
| Model number | Outter dia (mm) | Inner dia (mm) | Height (mm) | Petal qty |
| AT1 | 48 | 19 | 12 | 4 |
| AT2 | 68 | 28 | 18 | 6 |
| AT3 | 82 | 34 | 18 | 6 |
| AT4 | 100 | 42 | 20 | 6 |
| AT5 | 122 | 52 | 25 | 6 |
| AT6 | 140 | 64 | 30 | 6 |
| AT7 | 166 | 90 | 30 | 8 |
| AT8 | 196 | 100 | 35 | 8 |
| AT9 | 225 | 115 | 35 | 10 |
| AT10 | 255 | 140 | 45 | 10 |
| AT11 | 295 | 170 | 50 | 10 |
| AT12 | 356 | 215 | 55 | 12 |
| AT13 | 391 | 250 | 55 | 12 |
